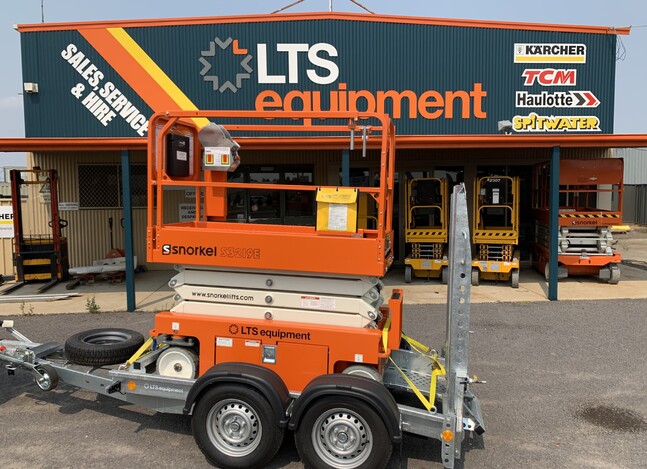

Hire our new Snorkel S3219E to help out with your next project!
The Snorkel S3219E electric scissor lift packs big features in a compact size. Easily driven through a standard doorway, this scissor lift suits indoor and outdoor applications. A telescopic roll-out deck extension maximizes platform space and deep cycle batteries maximize working hours.
Features
Roll-out deck extension with dual locks
Non-marking tires
Swing-out service trays
Saloon-door style entry gates
Descent alarm
All motion alarm
2 persons indoor
1 person outdoor
Proportional controls, including descent
Power line to platform
Loading pendant
Platform overload system
Flashing amber light
Hour meter & on-board diagnostics display
Integrated battery charger
Battery condition indicator
Crane & forklift points
Dual lanyard attachment points
Scissor stack roller slide plates (set of 2)
2 year parts & labor, 5 year structural warranty
Specifications
Max. working height: 7.79m
Max. platform height: 5.79m
Platform size (stowed): 0.72m x 1.62m
Platform size (extended): 0.72m x 2.53m
Deck extension length: 0.91m
Overall length (with step): 1.78m
Overall length (without step): 1.73m
Overall width: 0.81m
Min. height (guardrails folded): 1.65m
Stowed height: 2.11m
Ground clearance (stowed): 66mm
Ground clearance (elevated): 19mm
Platform capacity (SWL): 250kg
Max. drive height: 5.79m
Max. wind speed: 12.5m/s
Max. drive speed (elevated): 0.6km/h
Max. drive speed (stowed): 3.2 km/h
Raise / lower time: 20 / 38 seconds
Gradeability: 25%
Inside turning radius: 0.1m
Outside turning radius: 1.63m
Tires: 12 x 4 non-marking rubber
Controls: proportional
Drive system: 2 wheel drive
Power source: 24V DC battery electric
Charger: 90 - 240V, 25amp
Weight: 1,438kg
